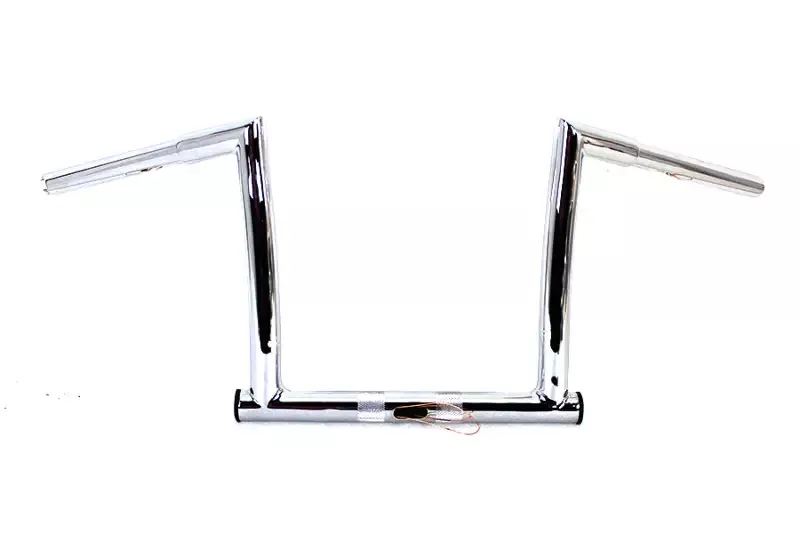

Chrome 1-1/4″ handlebar with a 12″ rise to center is indented to accept internal wiring, with a 3″ knurled center spacing. Handlebar is notched for throttle by wire applications.ChiZeled bar replaces welded and mitered corners with cast seamless 90° bends for added strength and style. The cast elbows features removable plugs to simplify internal wiring and eliminates sharp internal bends. The 1-1/4″ diameter at the clamping area is for use with 2015-up FLTR Roadglide models and features a front oval wire hole. The front exit hole is used to wire full 1-1/4″ tubes at the riser clamp area. *NOTE: Additional components requred, must be ordered separately. **NOTE: For reference, original bars on 2015-up FLTR is OEM 55800332 and is 9″ tall. *Note: UPS may consider this part as packaged “oversize” for shipment, as compared to the actual weight, which will result in higher shipping costs.
| UOM |
1 – EA |
| Measurements |
| Diameter: 1-1/4″ |
Width Tip-to-Tip: 31″ |
Center Width: 12-1/2″ |
|
| Manufacturer |
MCM |
| Other Notes |
| Knurl: 3″ |
Rise: 14″ |
Pull Back: 6-1/4″ |
|
