The Integrated headset keeps your handlebar turning nice and smooth to make sure you can take every corner as tight as you want, and the durable sealed bearings makes sure you can keep doing that for a long time!

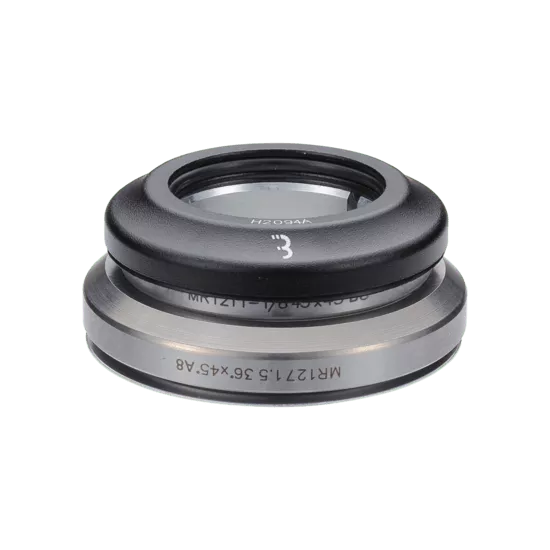

Model number:BHP-46
- Integrated tapered headset
- Bearing diameter: 1.1/8-1.5″ – 41.8 – 51.8 mm
- 36×45 sealed lower bearing and 45×45 sealed upper bearing
Specifications
- Weight (g)
72
- Headtube lower/inner diameter (mm)
52
- Headtube upper/inner diameter (mm)
42
- S.H.I.S. Upperi
IS42/28.6
- Headset typei
Integrated (IS)
- Bearings material
CrMo
- S.H.I.S. Loweri
IS52/40
- Fork size (inch)
1.1/8 – 1.1/2
- Crown race includedi
Yes
- Cone spacer height (mm)
8
- Cone spacer diameter (mm)
46
- Bearings included
BHP-181, BHP-185
Sealed retainer CrMo bearings
The bearings of this headset are made with sealed retainer CrMo bearings. CrMo is a variant of steel that is mixed with chrome and molybdenum what gives the material strength. They are sealed to protect them against dirt, ensuring durability and easy replacement, making them a reliable choice for smoother rides. Although it is not as lightweight as aluminium it has a high tensile strength and is easy weldable. Therefore, it is stronger as standard steel and lasts longer.
Integrated (IS) headset
As the name suggests, the headset is integrated in the frame of the bike. The bearings are directly placed into the frame. This means that there are no cups between the frame and the bearings. This type of headset gives you the code IS.
