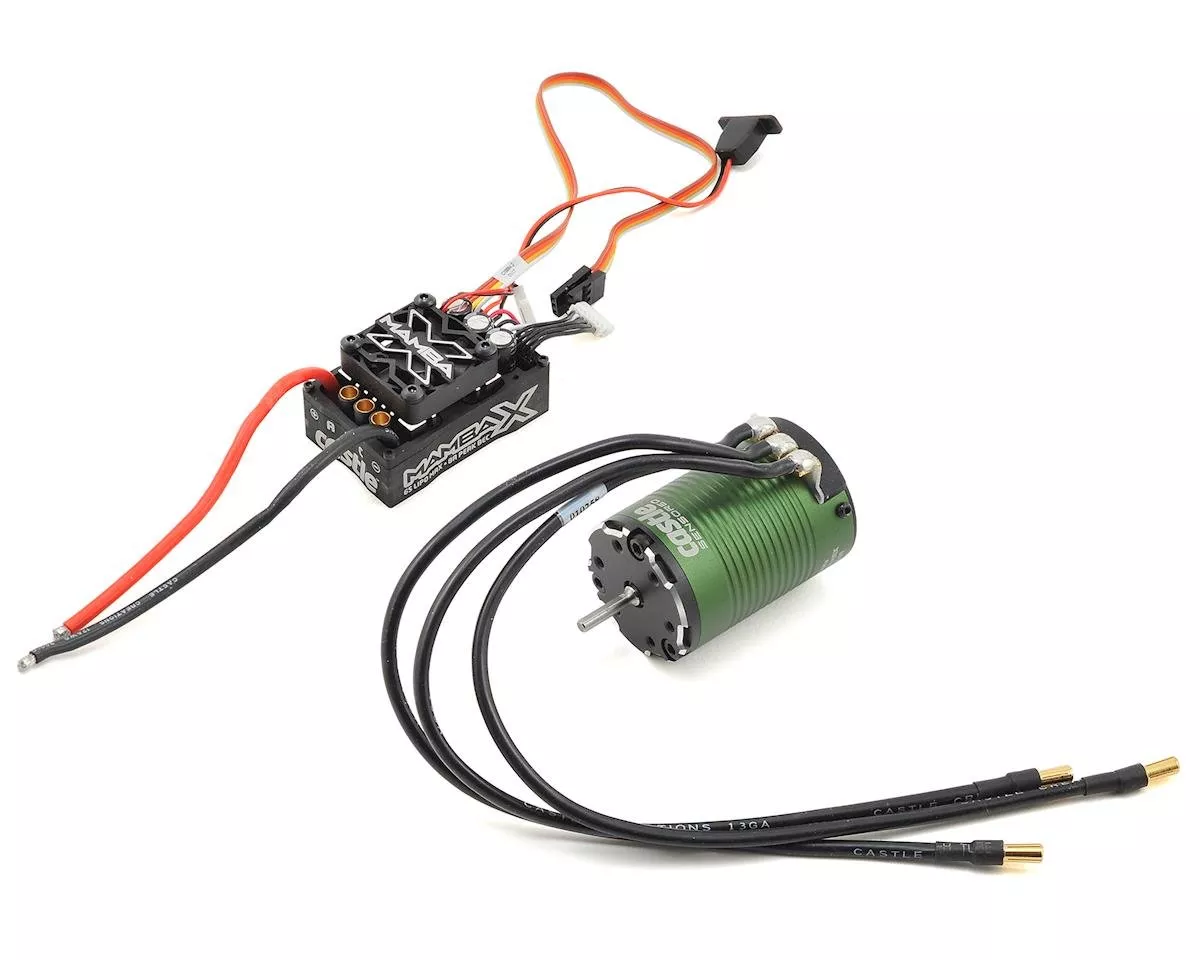

The Castle Creations Mamba X SCT 1/10 Brushless Combo includes the Mamba X, with the awesome 1410 Sensored motor to create a all in one system perfect for 1/10 scale 2WD and 4WD SCT up to 6.5lb (2S) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S).
The Mamba X is going to shake things up. Extremely versatile, and capable of powering a wide variety of applications and vehicles the Mamba X is ideal for racing at the track with your 2wd buggy, bashing through mud puddles in your monster truck, or navigating a hardcore trail with your crawler. The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale race buggies.
Features
ESC:
- Wide 2S to 6S input voltage range
- Sensored Motor Support (Castle X-Series Sensor Harness Included)
- Waterproof
- 8A Adjustable BEC (5.25V-8.0V)
- Data-logging
- Rugged CNC Aluminum Case
- Castle Link Programming Support
- SmartSense
- Integrated Capacitors
Motor:
- 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT
- Oversized gold plated solder tabs for LESS RESISTANCE and easy soldering
- QUIETSENSETechnology shields magnetic field noise generated from the motor coils and keeps motor and ESC in sync at all times
- HIGHER PRECISION and MORE EFFICIENT startups
- OPTIMIZED design eliminates the need for mechanical timing adjustments
- Sensor alignment method delivers uniform timing and torque in both directions, automatically
- REBUILDABLE design allows users to replace front end bell with bearings or rotors with shaft
Specifications
ESC:
- Input Voltage Range:2S LiPo (7.4V) to 6S LiPo (25.2V)
- BEC Specifications:Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
- Operating Environment:Waterproof* design allows for use in nearly any environment.
- Brake:Proportional
- Reversible:Yes, but may be disabled for racing.
- On/Off Switch:Yes
- Cooling Fan:Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
- Size (LxWxH):2.14×1.39×1.18″ (54.4×35.2×30.0mm)
- Weight (with wires):3.56 oz. (101g)
- Connectors:4.0mm female bullets for motor connection.
- Items Needed for Operation:Battery Connector
Motor:
- Input Voltage Range:2-3S LiPo
- Kv:3800
- Max. RPM:100,000
- Length:52.7mm
- Diameter:36mm
- Weight (w/wires):237g / 8.4oz
- Shaft Length:15mm
- Shaft Diameter:1/8″ (3.17mm)
- Mounting Hole Specifications:M3 @ 25mm
