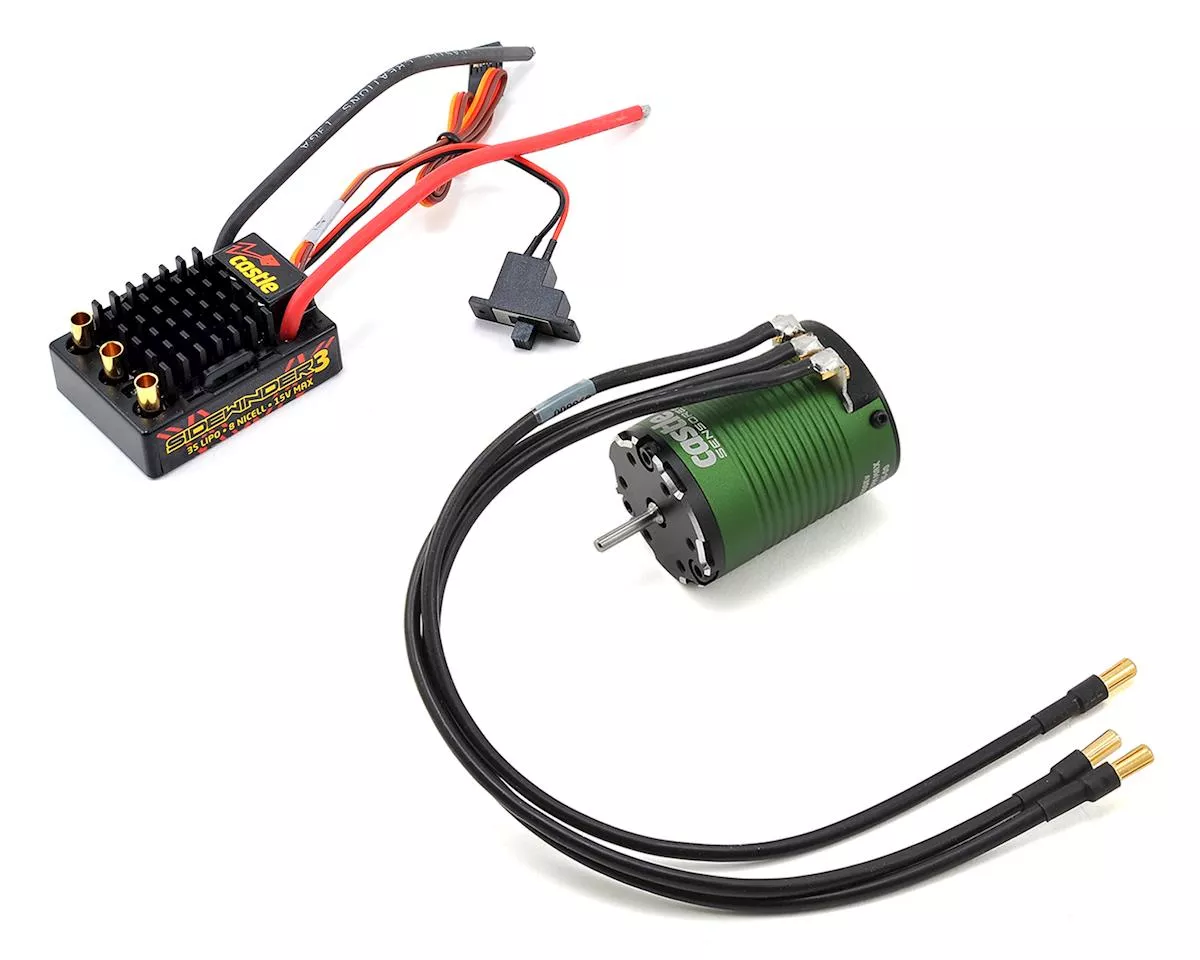

This is the Castle Creations Sidewinder SV3 WP 1/10 ESC and Brushless Motor Combo, including a Neu-Castle 1406 4600kV Brushless and Sensored Motor. Castles Sidewinder ESC is now waterproof! The Sidewinder 3 can power crawlers on water filled trails, AWD’s in rain soaked parking lots, and SCT’s on adventures through muddy fields. Drivers can now give in to those irresistible urges to drive in the mud or rip through puddles without damaging their ESC.
Features
- Waterproof ESC for all-weather and wet conditions
- Includes Neu-Castle 1406 4600 kV Sensored Brushless Motor
- Smooth, powerful, and reliable performance for 1/10 scale vehicles
- Compatible with crawlers, AWDs, and SCTs
- Safe to drive through mud, puddles, and rain-soaked terrain
Specifications
ESC:
- Input Voltage: MIN: 2S LiPo, MAX: 3S LiPo
- Operating Environment: Waterproof* design allows use in nearly any environment
- Brake: Proportional
- Reversible: Yes, with lockout
- Size (LWH): 1.931.480.79 in (493820 mm)
- Weight (with 127 mm long battery wires, no battery connector): 1.96 oz (55.5 g)
Motor:
- Input Voltage Range: 23S LiPo
- Kv: 4600
- Max. RPM: 100,000
- Size (LDiameter): 49.5 mm36 mm
- Weight (with wires): 197 g / 6.9 oz
- Shaft Size: Length 15 mm, Diameter 1/8″ (3.17 mm)
- Mounting Hole Specifications: M3 @ 25 mm
- Connectors: 4 mm male Castle Bullet Connectors
- Application Guidelines: 1:10 scale 2WD SCT, on-road touring, stadium truck, and buggies
- Max. Recommended Vehicle Weight: 2WD SCT Trucks up to 5 lbs, stadium trucks, buggies, and on-road vehicles up to 4 lbs
- Tech Notes: Running modes: SMARTSENSE, Sensored, Sensorless
