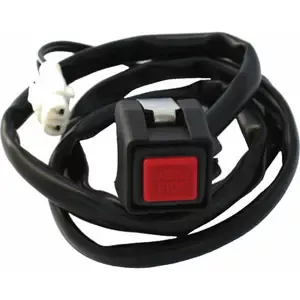

The RFX Race Series cut-off switches are OEM replacement parts.
Complete with the same fittings, fixings, connectors, and cable lengths as the original part.
Available for a wide variety of motorcycles.
Features:
- OEM replacement
- Accepts all original connectors
- OEM cable length
Installation instructions:
- Start by removing the front plate.
- Carefully cut the cable ties holding the starter and stop switch cables on the handlebars, then unscrew the clamps and let them hang.
- Locate the switch connector on the motorcycle, it’s usually near the steering column on the frame but can sometimes be found under the fuel tank.
- Detach the connector and remove the switch, noting the routing of the wiring.
- Clean the connector with an electrical contact cleaner.
- Lightly attach the new switch to the handlebars in the desired position.
- Route the wires as with the old switch and assemble the connector.
- Make sure the wires aren’t tight by turning the handlebars to full extension, adjust if necessary.
- Reinstall the cable ties if possible, positioning the cables at the back of the handlebars to avoid damage from debris.
- Replace your front plate.
Specifications:
- weight (g): 500
- width (mm): 95
- height (mm): 25
- length (mm): 145
- volume (cm³): 344
