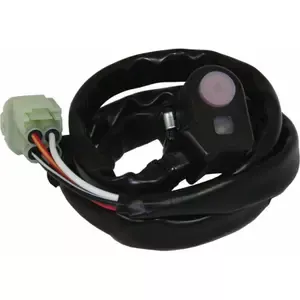

The RFX Race Series kill switches are OEM replacement parts.
Complete with the same fittings, fasteners, connectors, and cable lengths as the original part.
Available for a wide variety of motorcycles.
Features:
- OEM replacement
- Accepts all original connectors
- OEM cable length
Installation instructions:
- Start by removing the front panel.
- Carefully cut the cable ties holding the start and stop switch cables on the handlebars, then unscrew the clamps and let them hang.
- Locate the switch connector on the motorcycle, it is often near the steering column on the chassis but may sometimes be under the tank.
- Detach the connector and remove the switch while noting the wiring path.
- Clean the connector with an electrical contact cleaner.
- Lightly attach the new switch to the handlebars in the desired position.
- Route the wires as for the old switch and assemble the connector.
- Check that the wires are not taut by turning the handlebars to full extension, adjust if necessary.
- Reinstall the cable ties if possible by positioning the cables behind the handlebars to avoid damage from debris.
- Replace your front panel.
Specifications:
- weight (g): 60
- width (mm): 100
- height (mm): 30
- length (mm): 218
- volume (cm³): 654
