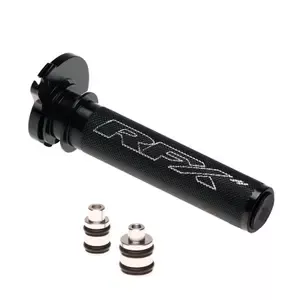

)Throttle tube RFX Pro (Black) for KTM SX/EXC 85-300 00-16, Husqvarna TC/TE 14-16
The new 2016 model now includes Two optional rings, ensuring you can adapt the throttle tube to the following handlebars.
RFX F7/F8
Renthal Twinwall
Renthal Fatbar, Pro Taper, Magura, Neken.
The throttle tubes RFX Pro series are machined from aluminium billets and feature a sealed bearing and a Teflon sleeve for effortless throttle operation. The RFX Pro series tubes resist damage in the event of a collision, unlike standard plastic tubes. For these reasons, they are used by many racing teams and top-level riders in British championships, such as STR KTM.
- Replacement throttle tubes for all known off-road motorcycles.
- Uses the same cam profile as the original part for good throttle control.
- Durable anodised aluminium billet construction.
- The sealed ball bearing and Teflon sleeve virtually eliminate any friction.
- RFX logo laser etched.
- Knurled grip mounting area.
- Reduced risk of damage in case of an accident.
Installation Instructions
- Slide the rubber sleeve down and remove the throttle housing, taking care to not damage the throttle cables while removing the old throttle tube.
- Gently remove the grip from the old throttle tube if necessary.
- Check that the cables and housing are not too damaged or worn, clean and lubricate them, or replace as needed.
- Clean the handlebars and check for damage where the old throttle tube rotated on the bars; if a notch is present, replace the handlebars.
- Slide the new throttle tube onto the handlebars and lubricate it with a penetrating lubricant, preferably Maxima MPPL (do not use grease as it attracts dirt and makes the throttle stick after a short time).
- Reassemble the throttle cables and housing using a penetrating lubricant.
- Tighten the throttle housing in the correct position on the handlebars.
- Adjust the cable slack to your liking.
- Rotate the handlebars to their maximum position to check the throttle’s proper operation and correct routing of the cable; some re-adjustment of the cable may be necessary.
- Slide the rubber sleeve over the housing.
- Cover the end hole of the grip with insulating tape (to prevent glue from entering the throttle barrel) and apply a small amount of special RFX grips glue to the outer end of the throttle tube, on the outer diameter.
- Apply a small amount of special RFX grips glue to the inside of the new grip and slide it over the tube.
- Twist the grip into the correct position and allow to dry.
- Apply the grip safety wire RFX if necessary.
- After the glue has dried, check the throttle’s proper operation again.
Specifications:
- colour: Black
- material: Aluminium
- v-colour: Black
- weight (g): 70
- width (mm): 100
- height (mm): 50
- length (mm): 140
- volume (cm³): 700
- packaging: single unit
