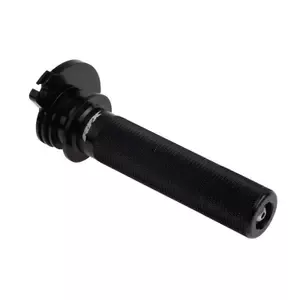

Pro Series Throttle Sleeve
The throttle tubes RFX Pro Series are machined from billet aluminium and feature a sealed bearing and a Teflon sleeve for effortless throttle actuation. The RFX Pro Series tubes withstand damage in case of a crash, unlike standard plastic tubes. For these reasons, they are used by many race teams and top-level riders in British championships, such as STR KTM.
- Replacement throttle tubes for all known off-road bikes.
- Uses the same cam profile as the original part for good throttle control.
- Hard anodized billet aluminium construction.
- The sealed ball bearing and Teflon sleeve virtually eliminate all friction.
- RFX logo laser-etched.
- Textured grip mounting area.
- Reduced risk of damage in case of an accident.
Slogan
Roller Bearing
For effortless throttle operation
CNC Machined Construction
For maximum impact resistance
Installation Instructions
- Slide the rubber cover down and remove the throttle housing, taking care to avoid damaging the throttle cables as you remove the old throttle tube.
- Carefully remove the grip from the old throttle tube if necessary.
- Check that the cables and housing are not too damaged or worn; clean and lubricate them, or replace if necessary.
- Clean the handlebars and check for damage where the old throttle tube rotated on the handlebars; if there is any damage, replace the handlebars.
- Slide the new throttle tube onto the handlebars and lubricate it with a penetrating lubricant, preferably Maxima MPPL (do not use grease as it attracts dirt and can cause the throttle to stick after a short period).
- Reassemble the throttle cables and housing using a penetrating lubricant.
- Secure the throttle housing in the correct position on the handlebars.
- Adjust the cable slack to your liking.
- Turn the handlebars to their maximum position to check the throttle operation and cable routing; some cable readjustment may be necessary.
- Slide the rubber cover back over the housing.
- Cover the opening at the end of the grip with insulating tape (to prevent glue from getting into the throttle barrel) and apply a small amount of special grip glue RFX to the outer end of the throttle tube, on the outer diameter.
- Apply a small amount of special grip glue RFX inside the new grip and slide it onto the tube.
- Twist the grip into the correct position and allow to dry.
- Apply the grip safety wire RFX if necessary.
- Once the glue has dried, check the throttle operation again.
Specifications:
- colour: Black
- material: Aluminium
- v-colour: Black
- weight (g): 70
- width (mm): 100
- height (mm): 50
- length (mm): 140
- volume (cm³): 700
- packaging: sold individually
