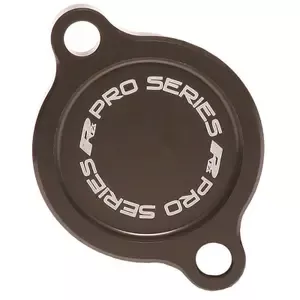

The oil filter casings RFX Pro Series are machined from 7075-T6 aluminium for improved dimensional stability under high heat and pressure.
The RFX filter casings also feature an increased flow design for better oil circulation.
Features:
- 7075-T6 aluminium construction.
- Increased flow design.
- Colour anodisation.
- Lightweight hollow design.
- Compatible with original O-rings.
Installation instructions:
- Drain the oil according to the maintenance manual.
- Carefully remove the old filter casing, taking care not to damage the sealing surface of the engine casing.
- Remove the O-ring, clean it, and install it on the new filter casing.
- If the oil filter is being replaced, remove it along with the retaining springs and dispose of the filter.
- Clean the inside of the filter housing and inspect for any signs of wear; the presence of metal shavings may indicate excessive engine wear.
- Soak the new oil filter in fresh engine oil.
- Install the new oil filter, the original spring, and the new filter casing.
- Top up the oil level according to the maintenance manual.
Specifications:
- colour: Magnesium
- v-colour: Magnesium
- weight (g): 100
- width (mm): 115
- height (mm): 30
- length (mm): 170
- volume (cm³): 587
