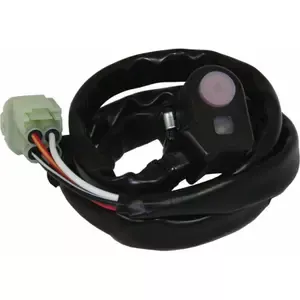

The buttons and switches from the RFX Race series are OEM replacement parts. They come with the same connectors, fasteners, and cable lengths as the original part.
Available for a wide range of motorbikes.
- OEM replacement
- Accepts all original connectors
- OEM cable length
Installation instructions:
- Start by removing the front plate.
- Carefully cut the zip ties holding the start and stop switch cables to the bars, then unscrew the clamps and let them hang.
- Locate the switch connector on the bike, which is often near the steering column on the frame, but sometimes under the tank.
- Detach the connector and remove the switch, noting the routing of the wires.
- Clean the connector with electrical contact cleaner.
- Slightly attach the new switch to the handlebars in the desired position.
- Route the wires as they were on the old switch and reconnect the connector.
- Check the freedom of movement of the wires by turning the handlebars fully and ensuring the wires are not too tight, adjust if necessary.
- Reposition the zip ties on the wires, placing the cables behind the bars to avoid damage from debris.
- Reinstall your front plate.
Specifications:
- weight (g): 49
- width (mm): 100
- height (mm): 33
- length (mm): 132
- volume (cm³): 436
