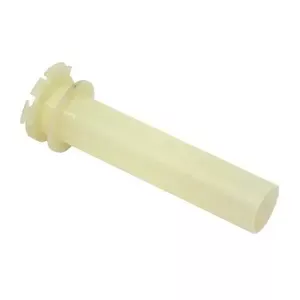

Sport Series throttle tubes
The sport series throttle tubes RFX are replacement parts that are identical at a much lower cost than authentic parts. They are made from a nylon fabric coated with Teflon, ensuring smooth operation.
- Replacement throttle tubes for all known off-road motorcycles.
- Uses the same cam profile as the original part for good throttle control.
- The nylon fabric coated with Teflon ensures smooth operation.
- Will not mark handlebars like aluminium tubes.
- Open-ended design for use with aluminium hand guards if needed.
Installation instructions
- Slide the rubber sleeve down and remove the throttle housing, taking care to not damage the throttle cables when removing the old throttle tube.
- Carefully remove the grip from the old throttle tube if necessary.
- Check that the cables and housing are not too damaged or worn, clean and lubricate them or replace them if necessary.
- Clean the handlebar and check for damage where the old throttle tube has rotated on the handlebar; if there is a burr, replace the handlebar.
- Slide the new throttle tube onto the handlebar and lubricate it with a penetrating lubricant, preferably Maxima MPPL (do not use grease as it attracts dirt and causes the throttle to stick after a short period).
- Reassemble the throttle cables and housing using a penetrating lubricant.
- Tighten the throttle housing in the correct position on the handlebar.
- Adjust the cable free play to your liking.
- Turn the handlebar to its maximum position to check the proper functioning of the throttle and the correct routing of the cable; some cable readjustment may be necessary.
- Slide the rubber sleeve over the housing.
- Cover the end of the grip hole with insulating tape (to prevent glue from entering the throttle barrel) and apply a small amount of RFX special grip glue to the outer end of the throttle tube, on the outer diameter.
- Apply a small amount of RFX special grip glue inside the new grip and slide it onto the tube.
- Turn the grip into the correct position and let it dry.
- Apply the brake wire for grips RFX if necessary.
- After the glue has dried, check the throttle operation again.
Features:
- colour: White
- material: PVC
- v-colour: White
- weight (g): 56
- width (mm): 120
- height (mm): 40
- length (mm): 240
- volume (cm³): 1152
- packaging: single unit
