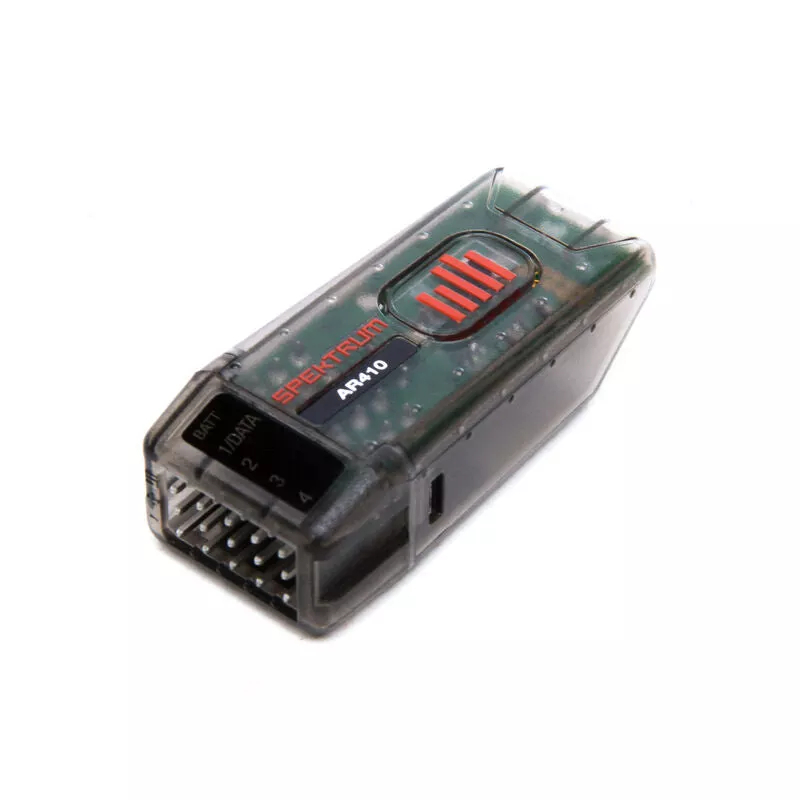

The Spektrum AR410 is a compact 4-channel full-range DSMX/DSM2 receiver designed for sport aircraft. Its internal antenna provides a clean installation with improved durability while maintaining strong reception. The AR410 also includes integrated fly-by telemetry for receiver voltage and flight log data, automatically available when used with telemetry-capable Spektrum transmitters. A large bind button makes setup simple, eliminating the need for bind plugs.
Features
- Compact full-range DSMX receiver with telemetry
- Internal antenna for clean installs and added durability
- Integrated flight log and receiver voltage telemetry
- Lightweight end-pin hard-case design
- Bind button for quick binding
- Full-range performance in a park-flyer size
- Ideal for most electric and indoor sport models
- Supports 11ms low-latency and 22ms frame rates
Specifications
- Antenna Length: Internal
- Application: Air
- Band: 2.4GHz
- Bind Method: Bind Button
- Channels: 4
- Data Port: No
- Failsafe: Yes
- Flight Log Compatible: No
- Forward Programming: No
- Input Voltage: 3.59V
- Integrated Variometer: No
- Modulation: DSMX
- Product Height: 0.55″ (13.9 mm)
- Product Length: 1.78″ (45.2 mm)
- Product Weight: 0.25 oz (7 g)
- Product Width: 0.79″ (20 mm)
- Programmable: No
- Range: Full
- Remote Receiver Ports: 0
- Resolution: 2048
- Rev Limiter: No
- Serial Out: None
- Technology: Standard
- Telemetry: Integrated
- Telemetry Range: Fly-By
- Water-Resistant: No
