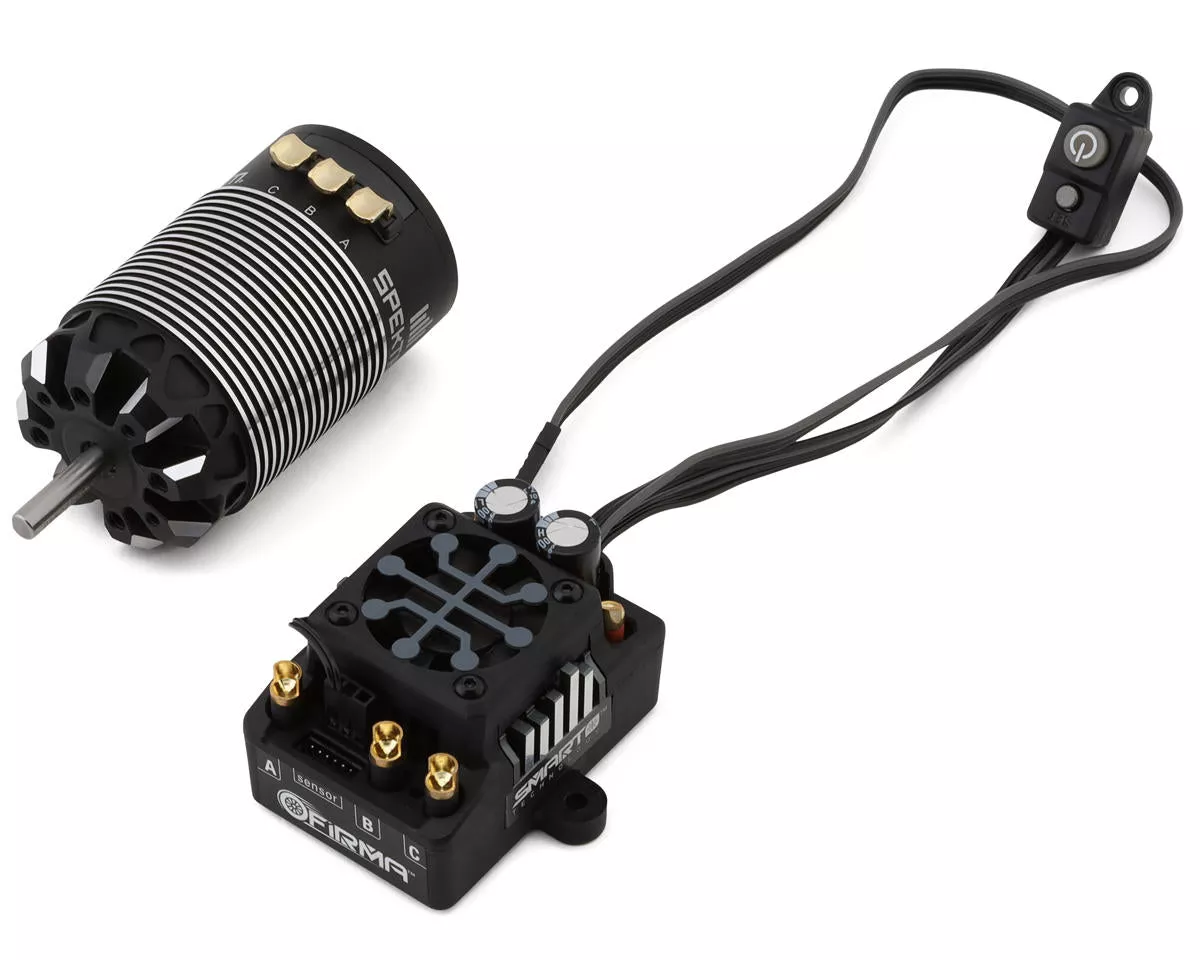

The Spektrum Firma Smart ESC and Motor Combo is a premier choice for 1/8 scale buggies operating on 4S LiPo power. This combo integrates a high-precision magnetic encoder and rotor position sensor, delivering exceptional control at any speed and angle. Spektrum RC’s Smart technology ensures seamless communication between components, making this ESC and Motor combo a top-tier upgrade for RC enthusiasts.
Features:
- Smart all-in-one telemetry
- 32-bit ARM M4 processor
- Forward programming from the transmitter when used with a compatible Spektrum radio
- Over-current, low-voltage, thermal, and failsafe protection
- Adjustable high-power BEC
- High heat-resistant IC connectors, backwards compatible with EC connectors
- Compact for easy installation in most 1/8 scale applications
- Firmware updatable through the Smart ESC Programming Box
- Aluminum heat sink for high efficiency
- Integrated cooling fan helps maintain optimal temperatures
Specifications:
ESC:
- Suggested Application: 1/8 Buggies & Truggies
- Battery Connector: Solder Tabs (Installable IC5 included)
- Input Voltage: 24S LiPo (7.414.8V)
- Continuous Current: 130A
- Burst Current: 760A
- BEC Voltage: 67.4V
- BEC Continuous Current: 5A
Motor:
- Suggested Application: 1/8 Buggies & Truggies
- Size: 2200kV
- Type: Brushless – Sensored
- Voltage: 26S LiPo (7.422.2V)
- Poles: 4
- Adjustable Timing: Fixed
- Watts:
- Connector: Solder
